Description

The Spirax Sarco HP45 bimetallic steam trap is made of forged steel and is designed for draining high-pressure, high-temperature steam lines and process equipment.

This thermostatic steam trap is specially designed for HP steam service and uses a reinforced stainless steel insert within the body, allowing inline repair. It operates without loss of live steam and quickly discharges air, non-condensable gases, and large quantities of cold water during start-up.

Normally open in the event of failure, the HP45 includes an integral strainer screen and an external adjustment device for setting condensate discharge temperature.

Standards

This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification and inspection requirements must be stated at the time of order placement.

Sizes and pipe connections

• 1/2", 3/4", and 1" screwed BSP T Rp (ISO 7-1) or NPT
• Socket weld ends to ANSI B 16.11
• Butt weld ends to ANSI B 16.25
• DN15, DN20, and DN25 flanged PN63, PN100, and ANSI 600

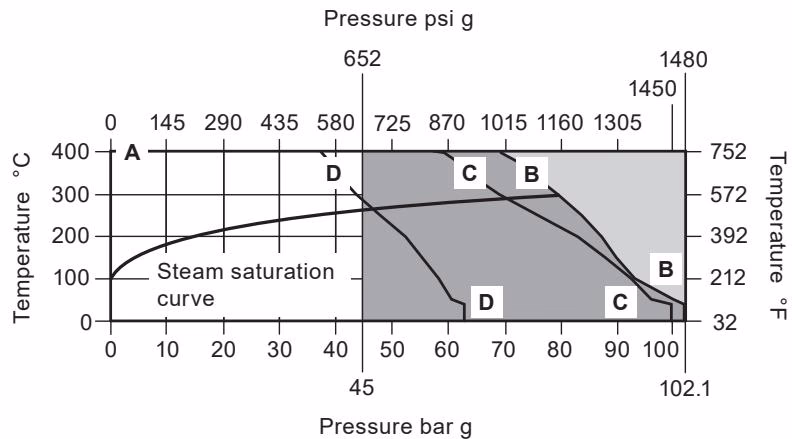

Pressure/temperature limits

• A-B-B: Flanged Class 600, screwed BSP / NPT, socket weld, and butt weld ends
• A-C-C: Flanged PN100
• A-D-D: Flanged PN63
• The product must not be used in the shaded region.
• The product should not be used beyond its operating range as damage to the internals may occur.

Parameter	Metric	Imperial
Body design conditions	Class 600 to ANSI B 16.34	-
PMA Maximum allowable pressure	102 bar g @ 38 °C	1479 psi g @ 100 °F
TMA Maximum allowable temperature	425 °C @ 57.5 bar g	797 °F @ 833 psi g
Minimum allowable temperature	0 °C	32 °F
PMO Maximum operating pressure	45 bar g @ 425 °C	653 psi g @ 797 °F
TMO Maximum operating temperature	425 °C @ 45 bar g	797 °F @ 653 psi g
Minimum operating temperature	0 °C	32 °F
Note for lower temperatures	Consult Spirax Sarco	Consult Spirax Sarco
Minimum inlet pressure for satisfactory operation	15 bar g	218 psi g
PMX maximum backpressure	Must not exceed 90% of upstream pressure	Must not exceed 90% of upstream pressure
Full vacuum service	Safe for use	Safe for use
Maximum cold hydraulic test pressure	166 bar g	2407 psi g

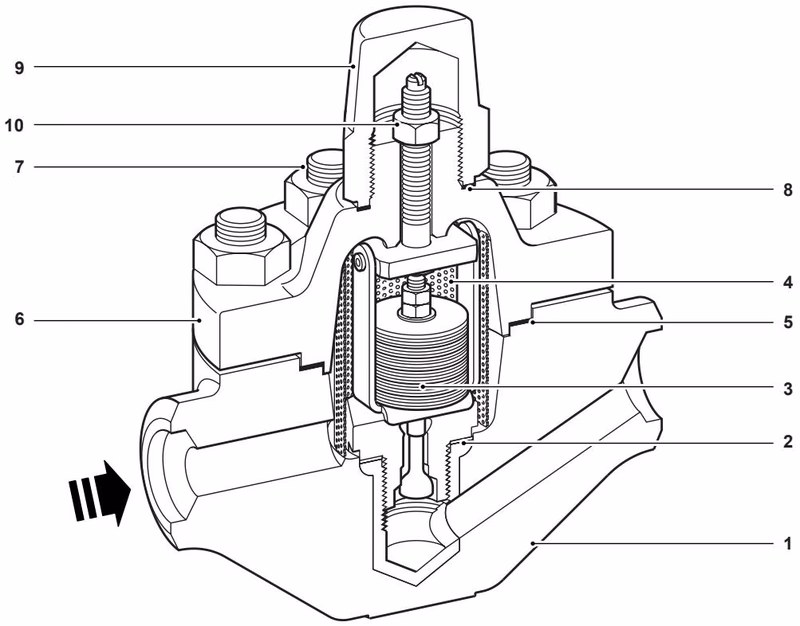

Materials

No.	Part	Material	Standard
1	Body	Steel	ASTM A105N
2	Valve seat gasket	Stainless steel	AISI 304
3	Bimetallic element	Stainless steel	-
4	Strainer screen	Stainless steel	AISI 304L
5	Cover gasket	Spiral wound stainless steel and graphite (asbestos free)	-
6	Cover	Steel	ASTM A105N
7	Cover stud	Steel	ASTM A193 Gr. B7
7	Cover nut	Steel	ASTM A194 Gr. 2H
8	Blind nut gasket	Stainless steel tanged reinforced graphite	-
9	Blind nut	Steel	ASTM A105
10	Lock-nut	Steel	-

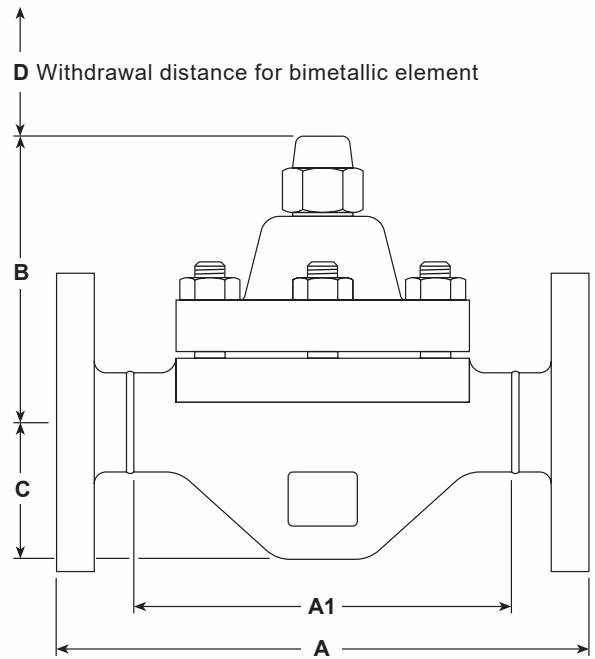

Dimensions and weights

Dimensions and weights are approximate, in mm (inches) and kg (pounds).

Size / Connection	A	A1	B	C	D	Weight
1/2", 3/4", 1" screwed BSP / NPT, socket weld, butt weld	-	160 (6.3)	124 (4.9)	58 (2.3)	150 (5.9)	6.5 (14)
DN15 flanged PN63 / PN100	235 (9.3)	-	124 (4.9)	58 (2.3)	150 (5.9)	11.0 (24)
DN15 flanged ANSI 600	235 (9.3)	-	124 (4.9)	58 (2.3)	150 (5.9)	9.5 (21)
DN20 flanged PN63 / PN100	235 (9.3)	-	124 (4.9)	58 (2.3)	150 (5.9)	11.5 (25)
DN20 flanged ANSI 600	235 (9.3)	-	124 (4.9)	58 (2.3)	150 (5.9)	10.0 (22)
DN25 flanged PN63 / PN100	235 (9.3)	-	124 (4.9)	58 (2.3)	150 (5.9)	12.0 (26)
DN25 flanged ANSI 600	235 (9.3)	-	124 (4.9)	58 (2.3)	150 (5.9)	10.5 (23)

Capacities

• Differential pressure bar (x 100 = kPa)
• Differential pressure psi (x 6.89 kPa)
• Cold water capacity
• Hot water capacity

Safety information, installation and maintenance

For full details, see the Installation and Maintenance Instructions (IM-P623-03) supplied with the product.

Disposal

The product is recyclable. No ecological hazard is anticipated with the disposal of this product, provided due care is taken.

How to order

Example: 1 off Spirax Sarco 1/2" HP45 bimetallic steam trap with socket weld end connections.

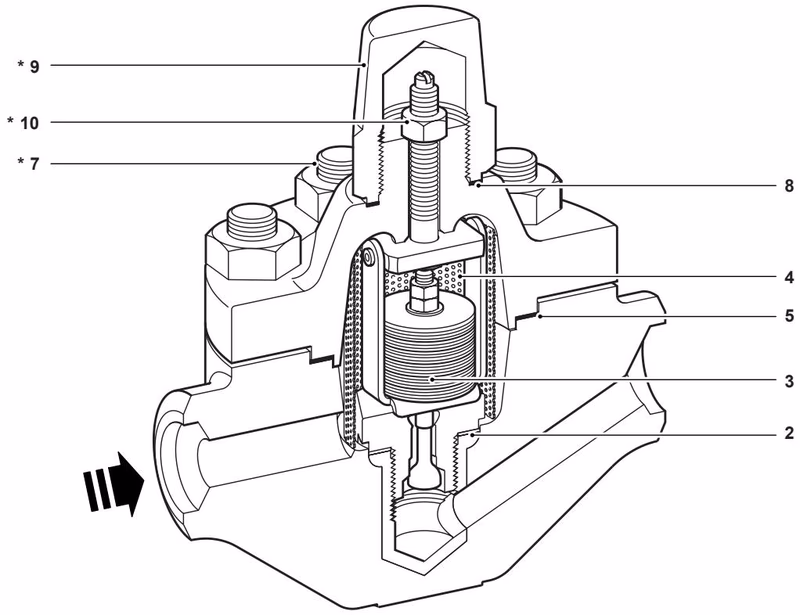

Spare parts

The spare parts available are detailed below. No other parts are supplied as spares.

Available spare	Parts
Bimetallic assembly kit	2, 3, 4, 5, 8
Cover gasket (pack of 3)	5
Gasket set	2, 5, 8
Strainer screen	4

Ordering spares

Always order spares by using the description given in the column headed "Available spare" and state the size and model of the bimetallic steam trap.

Example: 1 - Bimetallic assembly kit for a Spirax Sarco 1" HP45 bimetallic steam trap.

Items 7, 9, and 10 are not available as spares.

Recommended tightening torques

Item	Spanner size	N m	ft lbf
3	36 A/F	120 - 132	89 - 96
7	22 A/F	70 - 77	52 - 57
9	29 A/F	80 - 88	59 - 65
10	13 A/F	5	4
