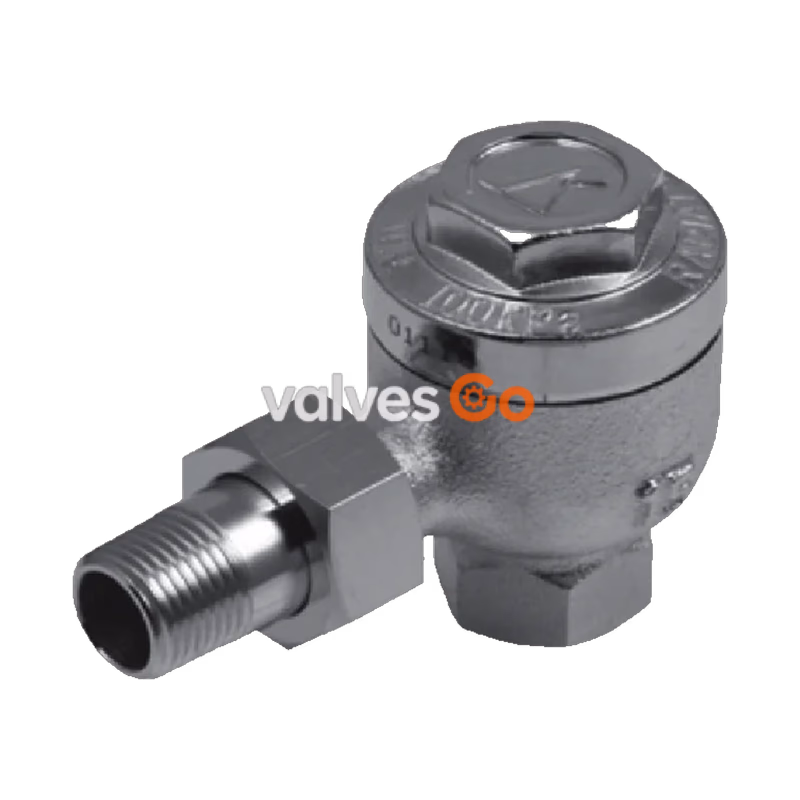

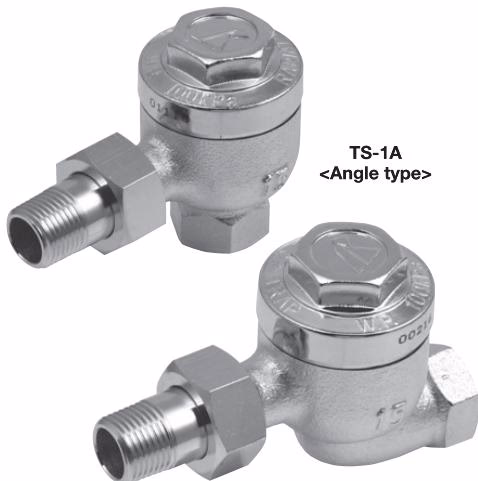

Yoshitake TS-1A and TS-1S radiator traps are designed for a wide variety of heating equipment. The TS-1A is an angle type trap, while the TS-1S is a straight type trap. These thermostatic steam traps feature a bronze body and a phosphor bronze bellows, ensuring quick discharge of condensate without steam leakage or freezing risks.

Features

• Reduced noise.
• Free from air troubles due to bellows type design.
• The bellows is manufactured from selected material under strict quality control. Quick discharge of condensate from the system, and no steam leakage with long service life.
• No worry for freezing.

Specifications

Application	Steam condensate
Maximum pressure	100 kPa
Maximum temperature	120°C
Material (Body)	Bronze
Material (Valve, valve seat)	Brass
Material (Bellows)	Phosphor bronze
Material (Union)	Brass
Connection	Inlet: JIS R screwed (union joint) Outlet: JIS Rc screwed

Note on Maximum Pressure

Available with 200 kPa maximum pressure as models TS-1HA (angle) or TS-1HS (straight), applicable only for nominal size 25A.

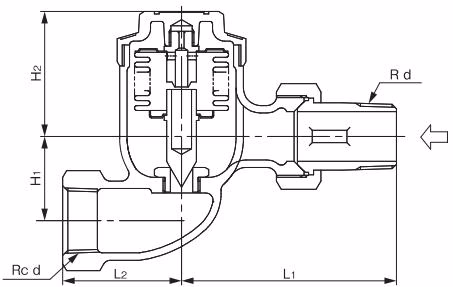

Dimensions and Weights

TS-1A (Angle Type)

Nominal size	d	L1	H1	H2	Weight (kg)
15A	1/2	80	35	39	0.6
20A	3/4	87	41	51.5	0.9
25A	1	105	52	49	1.6

TS-1S (Straight Type)

Nominal size	d	L1	L2	H1	H2	Weight (kg)
15A	1/2	80	43	28	39	0.7
20A	3/4	87	48	34	51.5	1.0
25A	1	105	60	40	49	1.7

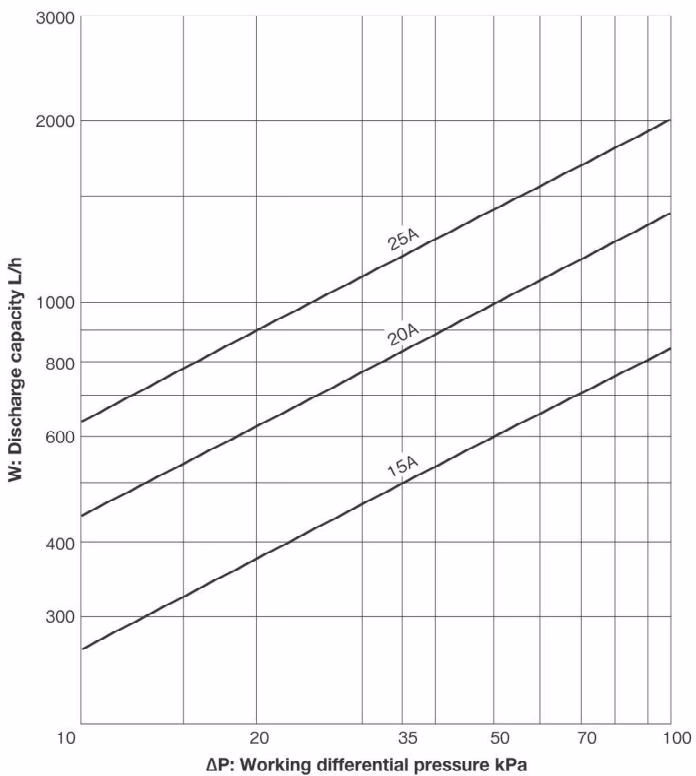

Maximum Continuous Discharge Capacity

System Design

This chart shows the maximum discharge. In designing a system, set a sufficient safety factor (two or three times).

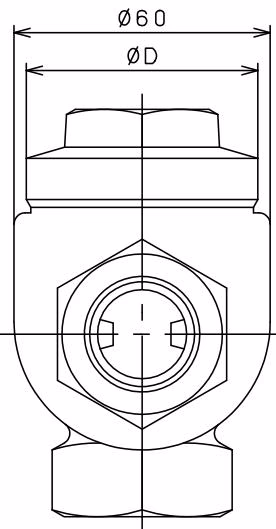

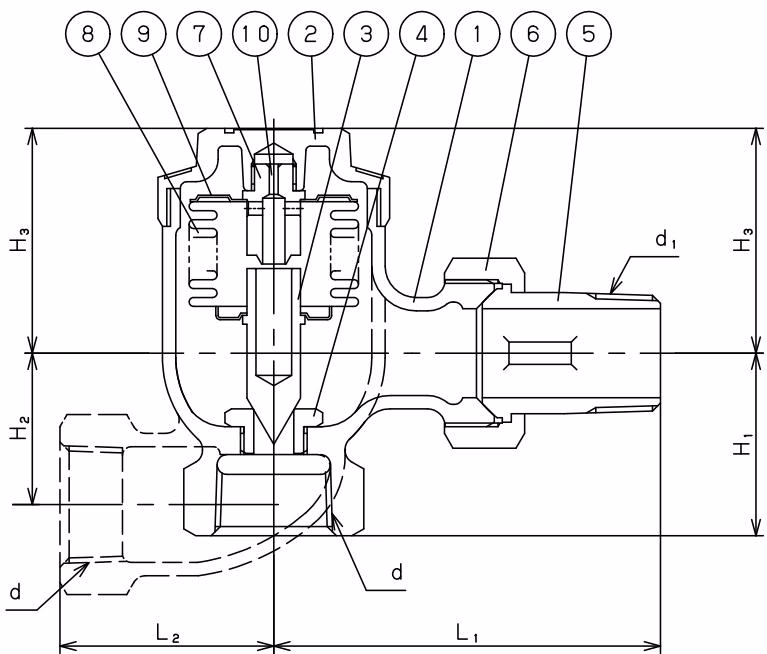

Structural Drawings and Parts List

No.	Name of Parts	Material	Q.TY
1	Body	Bronze	1
2	Cover	Brass	1
3	Valve	Brass	1
4	Seat	Brass	1
5	Union Nipple	Brass	1
6	Union Nut	Brass	1
7	Bellows Setscrew	Brass	1
8	Bellows	Phosphor Bronze	1
9	Bellows Step Plate	Brass	1
10	Pin	Brass	1

Structural Notes

• Parts No. 1, 2, 5, and 6 are chrome plated.
• Parts No. 3 and 7 to 10 form an integrated structure.
