Product Overview

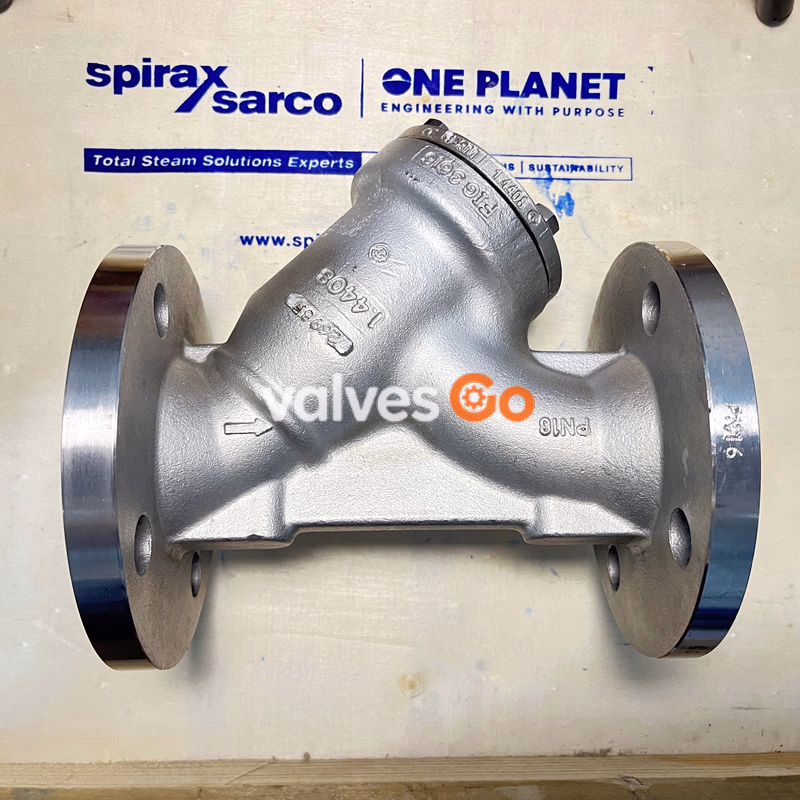

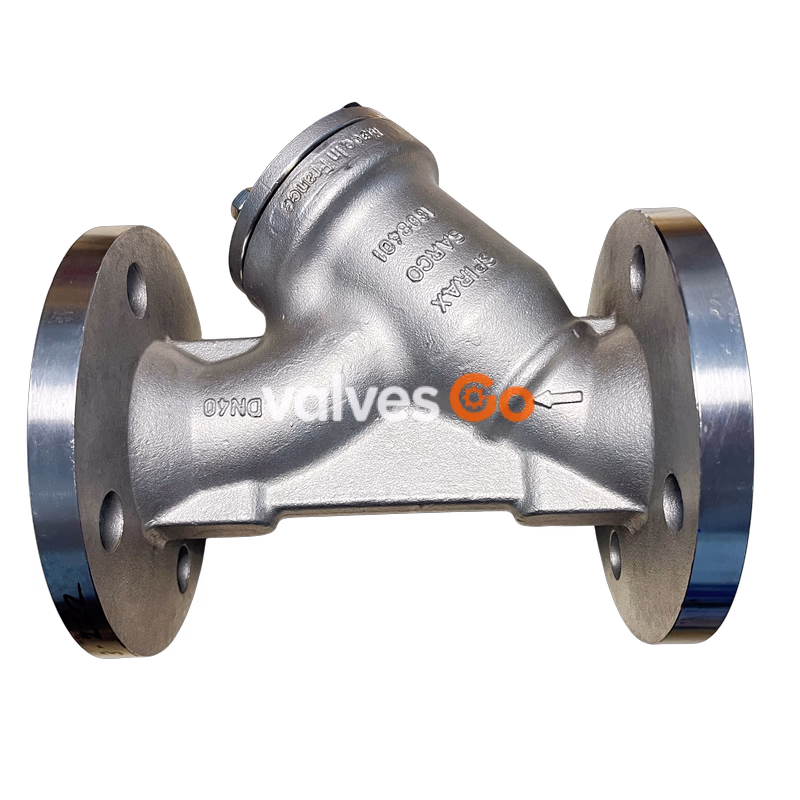

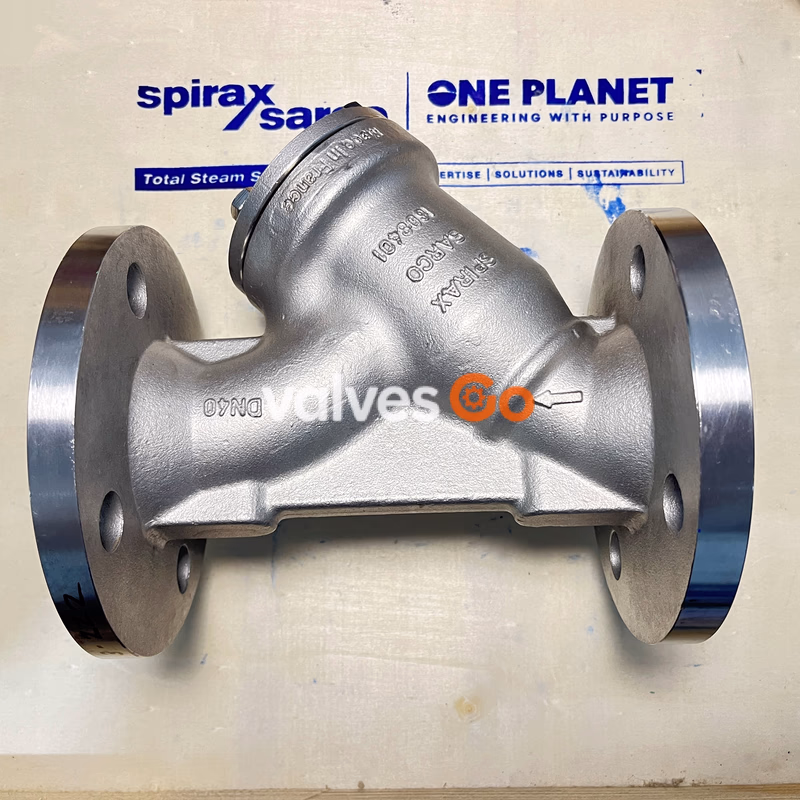

The Fig 3616 is an austenitic stainless steel integrally flanged Y-type strainer with flanged screen cover. Two material versions are available:
- PN16 version: Body to EN10213 pt 4 1.4408, cap to EN10088 pt 3 1.4401.
- ANSI 150 version: Body and cap to ASTM A351 CF8M.
Standard stainless steel screens: DN15 to DN80 have 0.8 mm perforations; DN100 to DN200 have 1.6 mm perforations. Optional Monel screens and mesh sizes (40, 100, 200 mesh) are also available.
Product Features
- Screens: Standard perforation as above; optional 3.0 mm perforation (DN15–DN200); Monel screens in mesh 40, 100 and 200.
- Blowdown/Drain valves: The strainer cap can be drilled and tapped for blowdown and drain valves (see connection sizes below).
- Pressure tappings: The body can be drilled and tapped for pressure tappings. These options are available at extra cost.
- Food+ version: DN15 to DN100 available, compliant with EC 1935/2004, EU 10/2011, FDA 21 CFR, with Declaration of Compliance for all wetted parts (at extra cost).
Standards and Certification
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU and carries the CE mark when so required.
Material certification to EN 10204 3.1.B is available for body and cap (at extra cost; must be stated at time of order).
Sizes and Pipe Connections
PN16 version: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200 Standard flanges: BS 4504 PN16
ANSI 150 version: ½", ¾", 1", 1¼", 1½", 2", 2½", 3", 4", 5", 6" and 8" Standard flanges: ASME (ANSI) Class 150
Optional Screens
| Screen Type | Specification | DN15–DN80 | DN100–DN200 |
|---|---|---|---|
| Stainless steel screen | 0.8 mm perforation | ● | — |
| Stainless steel screen | 1.6 mm perforation | — | ● |
| Stainless steel screen | 3.0 mm perforation | ● | ● |
| Monel screen | Mesh 40, 100 | 0.8 mm | 1.6 mm |
| Monel screen | Mesh 200 | 0.8 mm | 1.6 mm |
| Monel screen | 3.0 mm perforation | 3.0 mm | 3.0 mm |
Blowdown, Drain Valve and Pressure Connections
The cap can be tapped to enable a blowdown or drain valve to be fitted. The body can be drilled for pressure tappings (at extra cost).
PN16 Version
| Strainer size | Blowdown valve | Drain valve | Pressure tapping |
|---|---|---|---|
| DN15 to DN20 | ⅜" | ⅜" | ¼" |
| DN25 to DN32 | ½" | ½" | ¼" |
| DN40 to DN80 | ¾" | ¾" | ¼" |
| DN100 to DN200 | 1" | 1" | ¼" |
ANSI 150 Version
| Strainer size | Blowdown valve | Drain valve | Pressure tapping |
|---|---|---|---|
| ½" to ¾" | ⅜" | ⅜" | ¼" |
| 1" to 1¼" | ½" | ½" | ¼" |
| 1½" to 3" | ¾" | ¾" | ¼" |
| 4" to 8" | 1" | 1" | ¼" |

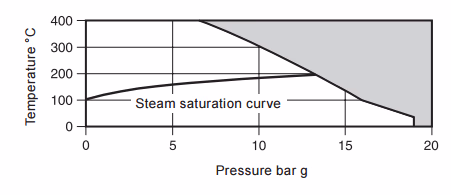

Pressure / Temperature Limits
WARNING
The product must not be used in the shaded region of the pressure/temperature graph.
PN16 Version
| Parameter | Value |
|---|---|
| Body design conditions | PN16 |
| PMA — Maximum allowable pressure | 15.7 bar g |
| TMA — Maximum allowable temperature | 300 °C |
| TMA — EC1935/2004 maximum allowable temperature | 200 °C |
| Minimum allowable temperature | -29 °C |
| Maximum cold hydraulic test pressure | 24 bar g |
Note: For lower operating temperatures consult Spirax Sarco. Special testing to allow lower temperature operation can be provided at extra cost.
ANSI 150 Version
| Parameter | Value |
|---|---|
| Body design conditions | ANSI 150 |
| PMA — Maximum allowable pressure | 19 bar g (275.5 psi g) |
| TMA — Maximum allowable temperature | 400 °C (752 °F) |
| Minimum allowable temperature | -29 °C (-20 °F) |
| Maximum cold hydraulic test pressure | 30 bar g (435 psi g) |
Note: Special testing to allow lower temperature operation can be provided at extra cost. Consult Spirax Sarco.
Product is safe for use under full vacuum conditions.
Materials
PN16 Version
| No. | Part | Material | Standard |
|---|---|---|---|
| 1 | Body | Austenitic stainless steel | EN10213 pt 4 1.4408 |
| 2 | Cap | Austenitic stainless steel | EN10088 pt 3 1.4401 |
| 3 | Cap gasket | Reinforced exfoliated graphite | — |
| 4 | Strainer screen | Austenitic stainless steel | ASTM A240 316L |
| 5 | Bolts | Austenitic stainless steel | EN ISO 3506 A2-70 |
Note: For the Food+ version, cap gasket is available in PTFE (EC1935/2004 compliant) instead of graphite.
ANSI 150 Version
| No. | Part | Material | Standard |
|---|---|---|---|
| 1 | Body | Austenitic stainless steel | ASTM A351 CF8M |
| 2 | Cap | Austenitic stainless steel | ASTM A351 CF8M |
| 3 | Cap gasket | Reinforced exfoliated graphite | — |
| 4 | Strainer screen | Austenitic stainless steel | ASTM A240 316L |
| 5 | Bolts | Austenitic stainless steel | EN ISO 3506 A2-70 |
Kv Values
| Size | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Perforations 0.8, 1.6 and 3 mm | 5 | 8 | 13 | 22 | 29 | 46 | 72 | 103 | 155 | 237 | 340 | 588 |
| Mesh 40 and 100 | 5 | 8 | 13 | 22 | 29 | 46 | 72 | 103 | 155 | 237 | 340 | 588 |
| Mesh 200 | 4 | 6 | 10 | 17 | 23 | 37 | 58 | 83 | 124 | 186 | 268 | 464 |
For conversion: Cv (UK) = Kv × 0.963; Cv (US) = Kv × 1.156

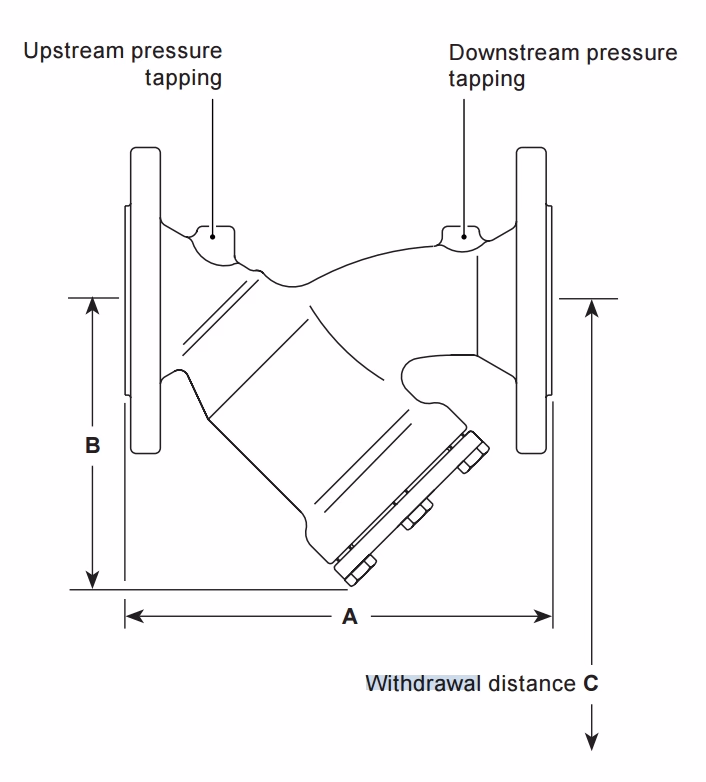

Dimensions and Weights (PN16 Version, approximate in mm and kg)
| Size | A | B | C | Screening area (cm²) | Weight |
|---|---|---|---|---|---|
| DN15 | 130 | 69 | 101 | 28 | 2.1 |
| DN20 | 150 | 82 | 125 | 46 | 2.9 |
| DN25 | 160 | 90 | 140 | 79 | 3.8 |
| DN32 | 180 | 114 | 198 | 135 | 6.6 |
| DN40 | 200 | 127 | 210 | 161 | 9.0 |
| DN50 | 230 | 150 | 248 | 251 | 10.5 |
| DN65 | 290 | 162 | 263 | 325 | 17.5 |
| DN80 | 310 | 178 | 272 | 360 | 20.0 |
| DN100 | 350 | 210 | 323 | 540 | 24.0 |
| DN125 | 400 | 253 | 393 | 840 | 38.0 |
| DN150 | 480 | 293 | 454 | 1115 | 50.5 |
| DN200 | 600 | 375 | 584 | 1905 | 88.0 |
Dimensions and Weights (ANSI 150 Version, approximate in mm (ins) and kg (lb))
| Size | A | B | C | Screening area (cm²) | Weight |
|---|---|---|---|---|---|
| ½" | 120 (4.72) | 69 (2.71) | 101 (3.97) | 28 | 2.1 (4.6) |
| ¾" | 144 (5.66) | 82 (3.22) | 125 (4.92) | 46 | 2.9 (6.4) |
| 1" | 154 (6.06) | 90 (3.54) | 140 (5.51) | 79 | 3.8 (8.4) |
| 1¼" | 180 (7.08) | 114 (4.48) | 198 (7.79) | 135 | 6.6 (14.5) |
| 1½" | 200 (7.87) | 127 (5.00) | 210 (8.26) | 161 | 9.0 (19.8) |
| 2" | 230 (9.05) | 150 (5.90) | 248 (9.76) | 251 | 10.5 (23.1) |
| 2½" | 290 (11.41) | 162 (6.37) | 263 (10.35) | 325 | 17.5 (38.6) |
| 3" | 310 (12.20) | 178 (7.00) | 272 (10.70) | 360 | 20.0 (44.1) |
| 4" | 351 (13.81) | 210 (8.26) | 323 (12.71) | 540 | 24.0 (52.9) |
| 5" | 401 (15.78) | 253 (9.96) | 393 (15.47) | 840 | 38.0 (83.7) |
| 6" | 473 (18.62) | 293 (11.53) | 454 (17.87) | 1115 | 50.5 (111.1) |
| 8" | 593 (23.34) | 375 (14.76) | 584 (22.99) | 1905 | 88.0 (194.0) |
Safety Information, Installation and Maintenance
For full details see the Installation and Maintenance Instructions (IM-S60-18) supplied with the product.
Safety Information
Pressure: Before attempting any maintenance, consider what is or may have been in the pipeline. Ensure that any pressure is isolated and safely vented to atmospheric pressure. This is easily achieved by fitting Spirax Sarco depressurisation valves type DV (see separate literature). Do not assume the system is depressurised even when a pressure gauge indicates zero.
Temperature: Allow time for temperature to normalise after isolation to avoid the danger of burns. Consider whether protective clothing (including safety glasses) is required.
Warning: The strainer cap gasket contains a thin stainless steel support ring, which may cause physical injury if not handled and disposed of carefully.
Installation note: The strainer should be installed in the direction of flow as indicated on the body. On applications involving steam or gases the pocket should be in the horizontal plane. On liquid systems the pocket should point downwards. Suitable isolation valves must be installed to allow for safe maintenance and trap replacement. Remove all protective caps prior to installation. Open isolation valves slowly until normal operating conditions are achieved. Check for leaks and correct operation.

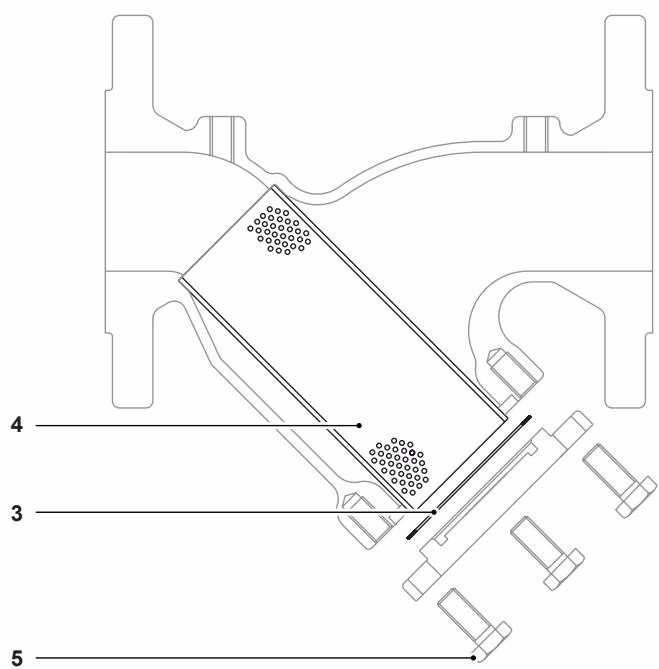

Spare Parts
The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.
PN16 Version — Available Spares
| Spare | Size | Quantity |
|---|---|---|
| Strainer screen (state material, perforation or mesh and size of strainer) | — | — |
| Cap gasket | DN15 to DN100 | 3 off |
| Cap gasket | DN125 to DN200 | 1 off |
| EC1935/2004 Cap gasket | DN15 to DN100 | 3 off |
ANSI 150 Version — Available Spares
| Spare | Size | Quantity |
|---|---|---|
| Strainer screen (state material, perforation or mesh and size of strainer) | — | — |
| Cap gasket | ½" to 8" | 3 off |
How to Order Spares
Always order spares by using the description given in the column headed 'Available spares' and state the size and type of strainer and perforation or mesh required.
Example (PN16): 1 – Strainer screen, stainless steel having 0.8 mm perforations for DN50 Spirax Sarco Fig 3616 strainer PN16.
Example (ANSI 150): 1 – Stainless steel strainer screen, having 0.8 mm perforations for a 2" Spirax Sarco Fig 3616 strainer flanged ASME (ANSI) 150.
Recommended Tightening Torques
PN16 Version
| Item | Size | Qty | Across flats (A/F) / Thread size | Nm |
|---|---|---|---|---|
| 5 | DN15 and DN20 | 4 | 13 A/F / M8×20 | 15–20 |
| 5 | DN25 | 4 | 13 A/F / M8×20 | 15–20 |
| 5 | DN32 and DN40 | 4 | 13 A/F / M8×20 | 15–20 |
| 5 | DN50 | 4 | 16 A/F / M10×25 | 22–25 |
| 5 | DN65 | 4 | 17 A/F / M10×30 | 22–25 |
| 5 | DN80 | 6 | 17 A/F / M10×30 | 22–25 |
| 5 | DN100 | 6 | 18 A/F / M12×35 | 50–60 |
| 5 | DN125 | 8 | 19 A/F / M12×40 | 50–60 |
| 5 | DN150 | 8 | 19 A/F / M12×40 | 50–60 |
| 5 | DN200 | 8 | 24 A/F / M16×50 | 100–110 |
ANSI 150 Version
| Item | Size | Qty | Across flats (A/F) / Thread size | Nm (lbf ft) |
|---|---|---|---|---|
| 5 | ½" | 4 | 13 A/F / M8×20 | 15–20 (11–15) |
| 5 | ¾" | 4 | 13 A/F / M8×20 | 15–20 (11–15) |
| 5 | 1" | 4 | 13 A/F / M8×20 | 15–20 (11–15) |
| 5 | 1¼" | 4 | 13 A/F / M8×20 | 15–20 (11–15) |
| 5 | 1½" | 4 | 13 A/F / M8×20 | 15–20 (11–15) |
| 5 | 2" | 4 | 16 A/F / M10×25 | 22–25 (16–18) |
| 5 | 2½" | 4 | 17 A/F / M10×30 | 22–25 (16–18) |
| 5 | 3" | 6 | 17 A/F / M10×30 | 22–25 (16–18) |
| 5 | 4" | 6 | 18 A/F / M12×35 | 50–60 (36–44) |
| 5 | 5" | 8 | 19 A/F / M12×40 | 50–60 (36–44) |
| 5 | 6" | 8 | 19 A/F / M12×40 | 50–60 (36–44) |
| 5 | 8" | 8 | 24 A/F / M16×50 | 100–110 (73–80) |
Disposal
The product is recyclable. No ecological hazard is anticipated with disposal of this product, providing due care is taken.
How to Order
PN16 example: 1 off Spirax Sarco DN40 Fig 3616 strainer, flanged BS 4504 PN16 with austenitic stainless steel screen having 0.8 mm perforations and flanged screen cap.
ANSI 150 example: 1 off Spirax Sarco 1½" Fig 3616 strainer, flanged ASME (ANSI) 150 with austenitic stainless steel screen having 0.8 mm perforations and flanged screen cap.
